MOISTURE ANALYZER – LABORATORY MEASUREMENT
TEWS METHOD
3 different layers of the same material with a typical 1 Parameter Method:
Each layer increases the moisture → misleading results
3 layers of same material show the same moisture, the density is recognized and
moisture result compensated → correct results
Measuring Moisture and Density Independently
There are some solutions for moisture analyzer in various applications:
Technical Data.

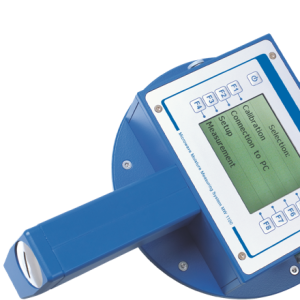

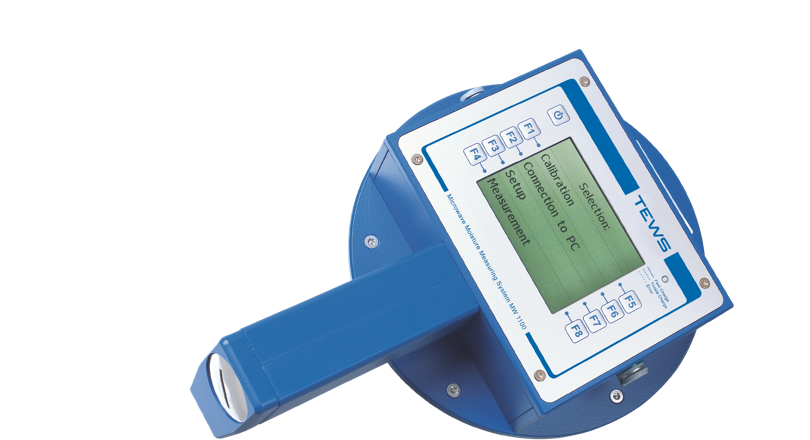

MW 1100 introduces you to fast mobile moisture measurement.
- Sample Temperature: 5 – 60 °C
- Ambient Temperature: 0 – 40 °C
- Measurement Time: Less than one second
- Product Memory: Up to 25 products
- Display: backlit LCD graphics display, screen diagonal 3,5 inches
- Reproducibility: Typical standard deviation with 10 x measurement 0.5% (material-dependent)
- Data Backup: EEPROM for storing 250 measurements
- Data Interfaces: USB
- Power Supply: NiMH battery
- Median Operating Duration: Approximately 5 hours (with fully charged battery)
- Protection Class: IP20
- Software: Besides the on-board firmware, PC communication can be operated using the convenient software “TEWS Moisture View Lite ©”.
Technical Data.

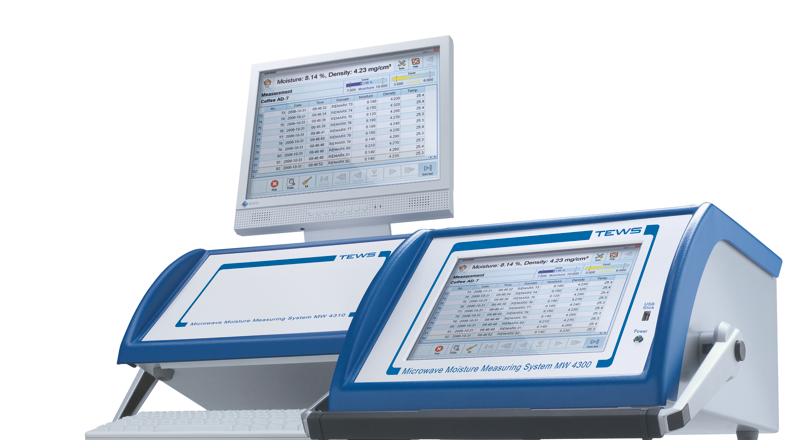

MW 4300 and MW 4310 introduce you to high-performance moisture and density laboratory measurement.
- Electrical Power Supply: 110 – 230 V AC, 50-60 Hz
- Power Consumption: 60 VA
- Ambient Temperature: 0 – 45 °C
- Data Interfaces: – 2 x RS 232 (COM, service) – 1 x Ethernet – 3 x USB – 1 x analog input (0/4-20 mA) for optional IR sensor (via sensor connection) – 1 x connection for Pt 100 temperature sensor – Connections for mouse and keyboard (PS-2) and VGA screen
- Measurement Time: milliseconds
- Data Memory: 6.000 on device, unlimited on external server
- Display: Mw 4300 – integrated 10.4” (26,4 cm) LCD color touchscreen, MW 4310 – external monitor, PC keyboard and mouse
- Features: Sensor for sample volumes of 1ml to 2000ml available, up to 2 laboratory sensors can be connected and Up to 200 product calibrations can be set up inside
Applications: Chemistry, Feed, Food & Pet Food, Pharma, Tobacco, Paper, Customer-Driven Solutions
For further inquiries regarding our applications, please contact us at the address below.
